SBCL: the ultimate assembly code breadboard

by

Edit: Lutz Euler points out that NEXT Sequence (used) encodes an effective address with an index register but no base. The mistake does not affect the meaning of the instruction, but forces useless encoding. The differences in machine code are as follows.

First (14 bytes):

1
2
3
4

;       03:       8B043D00000000   MOV EAX, [RDI] ; _5_ useless bytes!
;       0A:       4883C704         ADD RDI, 4
;       0E:       4801F0           ADD RAX, RSI
;       11:       FFE0             JMP RAX

Now (9 bytes):

1
2
3
4

;       93:       8B07             MOV EAX, [RDI]
;       95:       4883C704         ADD RDI, 4
;       99:       4801F0           ADD RAX, RSI
;       9C:       FFE0             JMP RAX

I have defined the NEXTBut not the disassembly snippet below; They still show the old machine code.

Earlier this week, I took another look at the F18. As always with Chuck Moore’s work, it’s hard to tell the difference between madness and mere genius 😉 One thing that surprised me is how small the stack is: 10 slots, without any fancy overflow/underflow traps. The logic is that, if you need more slots, you’re doing it wrong, and that silent overflow is useful when you know what you’re doing. This certainly matches my experience on the HP-41c and x87. It also reminds me of a post by DJB condemning our abuse of x87’s rotating stack: his thesis was that, with careful scheduling, a “free” FXCH Makes the stack equivalent – if not better – than registers. The post ends with a (non-pipelined) loop that wastes no cycles shuffling data due to x87’s built-in stack rotation.

This makes me wonder what implementation techniques become available for stack-based VMs that limit their stack to 8 slots. Obviously, it would be ideal to keep everything in a register. However, if we do this naively, the push and pop become much more complex; There’s a reason why Forth engines typically only cache the top 1-2 elements of the stack.

I decided to mimic x87 and F18 (edit: modulo the latter two TOS cache registers): pushing/popping causes no data movement. Instead, as shown in the figure below, they decrement/increment a modular counter that points to the top of the stack (TOS). In software it will still be slow (most ISAs can’t index registers). The main thing is that the counter cannot take too many values: only 8 values ​​if there are 8 slots in the stack. Stack VMs already mimic primops for performance reasons (e.g., to help BTB by spreading the execution of the same primitive among multiple addresses), so it seems reasonable to specialize the primop for all 8 values ​​the stack counter can take.

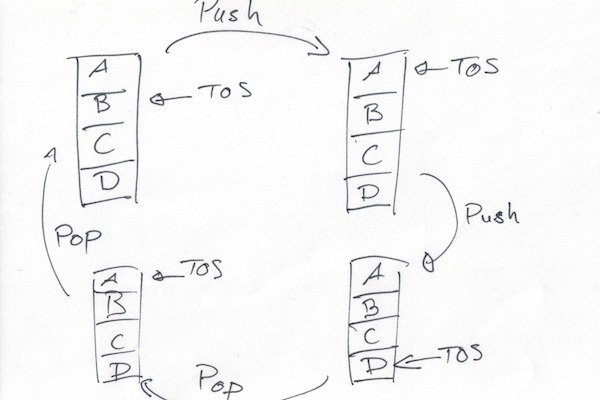

rotating stack

In a regular direct threaded VM, most primitives will end with a code sequence that leads to the next one (NEXT), something like add RSI, 8 ; Increase virtual IP before JMP jump [rsi-8] ; Go to the address where RSI previously reported rsi Virtual instructions are pointers, and VM instructions are simply pointers in machine code to the corresponding primitive.

I will make two changes in this order. I don’t like hardcoding addresses in bytecode, and 64 bits per virtual instruction is highly wasteful. Instead, I would encode the offset from the premap code block: mov eax, [rsi]
add rsi, add 4 racks, where rdi jmp racks rdi is the base address for preamps.

I also need to dispatch based on the new value of the underlying stack counter. I decided to make dispatching as easy as possible by storing variants of each premap at regular intervals (e.g. a page). I rounded it off 64 * 67 = 4288 Bytes to reduce aliasing accidents. NEXT mov eax becomes something like, [rsi]
add rsi, 4 li rax, [rax + rdi + variant_offset]
JMP Racks

the trick is variant_offset = 4288 * stack_counterAnd the stack counter is (usually) known when the primitive is compiled. If the stack is left as is, the counter is also left as is; Pressing a value decreases the counter and pressing one increases the counter.

This seems fair enough. Let’s see if we can make it work.

I want to figure out a problem for which I will emit a lot of repetitive machine code. SLIME’s REPL and SBCL’s assembler are perfect for this task! (I hope it’s clear that I’m using unsupported internals; if it breaks, you keep the pieces.)

The basic design of a VM is:

  • r8–r15:Stack Slot (32bit);
  • rsi: base address for machine code primitives;
  • rdi: virtual instruction pointer (points to next instruction);
  • rax,rbx,rcx,rdx:scratch register;
  • rsp: (virtual) Return stack pointer.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

(import '(sb-assem:inst sb-vm::make-ea)) ; we'll use these two a lot

;; The backing store for our stack
(defvar *stack* (make-array 8 :initial-contents (list sb-vm::r8d-tn
                                                      sb-vm::r9d-tn
                                                      sb-vm::r10d-tn
                                                      sb-vm::r11d-tn
                                                      sb-vm::r12d-tn
                                                      sb-vm::r13d-tn
                                                      sb-vm::r14d-tn
                                                      sb-vm::r15d-tn)))

;; The _primop-generation-time_ stack pointer
(defvar *stack-pointer*)

;; (@ 0) returns the (current) register for TOS, (@ 1) returns
;; the one just below, etc.
(defun @ (i)
  (aref *stack* (mod (+ i *stack-pointer*) (length *stack*))))

(defvar *code-base* sb-vm::rsi-tn)
(defvar *virtual-ip* sb-vm::rdi-tn)

(defvar *rax* sb-vm::rax-tn)
(defvar *rbx* sb-vm::rax-tn)
(defvar *rcx* sb-vm::rax-tn)
(defvar *rdx* sb-vm::rax-tn)

;; Variants are *primitive-code-offset* bytes apart
(defvar *primitive-code-offset* (* 64 67))

;; Each *stack-pointer* value gets its own code page
(defstruct code-page
  (alloc 0) ; index of the next free byte.
  (code (make-array *primitive-code-offset* :element-type '(unsigned-byte 8))))

The idea is that we will define functions to emit assembly code for each primitive; These functions will be implicitly parameterized
*stack-pointer* thanks for doing @. We can then call them as many times as needed to cover all values *stack-pointer*. The only complication is that the code sequences will vary in length, so we need to insert padding to keep everything in sync. this is it emit-code
Does:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

(defun emit-code (pages emitter)
  ;; there must be as many code pages as there are stack slots
  (assert (= (length *stack*) (length pages)))
  ;; find the rightmost starting point, and align to 16 bytes
  (let* ((alloc (logandc2 (+ 15 (reduce #'max pages :key #'code-page-alloc))
                          15))
         (bytes (loop for i below (length pages)
                      for page = (elt pages i)
                      collect (let ((segment (sb-assem:make-segment))
                                    (*stack-pointer* i))
                                ;; assemble the variant for this value
                                ;; of *stack-pointer* in a fresh code
                                ;; segment
                                (sb-assem:assemble (segment)
                                  ;; but first, insert padding
                                  (sb-vm::emit-long-nop segment (- alloc (code-page-alloc page)))
                                  (funcall emitter))
                                ;; tidy up any backreference
                                (sb-assem:finalize-segment segment)
                                ;; then get the (position-independent) machine
                                ;; code as a vector of bytes
                                (sb-assem:segment-contents-as-vector segment)))))
    ;; finally, copy each machine code sequence to the right code page
    (map nil (lambda (page bytes)
               (let ((alloc (code-page-alloc page)))
                 (replace (code-page-code page) bytes :start1 alloc)
                 (assert (<= (+ alloc (length bytes)) (length (code-page-code page))))
                 (setf (code-page-alloc page) (+ alloc (length bytes)))))
         pages bytes)
    ;; and return the offset for that code sequence
    alloc))

This function is used emit-all-code Emitting machine code for a set of primitives, tracking the start offset for each primitive.

1
2
3
4
5
6
7
8
9
10

(defun emit-all-code (&rest emitters)
  (let ((pages (loop repeat (length *stack*)
                     for page = (make-code-page)
                     ;; prefill everything with one-byte NOPs
                     do (fill (code-page-code page) #x90)
                     collect page)))
    (values (mapcar (lambda (emitter)
                      (emit-code pages emitter))
                    emitters)
            pages)))

Now, the piece de resistance:

1
2
3
4
5
6
7
8
9
10
11
12
13

(defun next (&optional offset)
  (setf offset (or offset 0)) ; accommodate primops that frob IP
  (let ((rotation (mod *stack-pointer* (length *stack*))))
    (inst movzx *rax* (make-ea :dword :base *virtual-ip*
                                      :disp offset))
    (unless (= -4 offset)
      (inst add *virtual-ip* (+ 4 offset)))
    (if (zerop rotation)
        (inst add *rax* *code-base*)
        (inst lea *rax* (make-ea :qword :base *code-base*
                                        :index *rax*
                                        :disp (* rotation *primitive-code-offset*))))
    (inst jmp *rax*)))

Let’s add some simple primitives.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

(defun swap ()
  (inst xchg (@ 0) (@ 1)) ; exchange top of stack and stack[1]
  (next))

(defun dup ()
  (decf *stack-pointer*) ; grow stack (which grows down)
  (inst mov (@ 0) (@ 1)) ; and overwrite TOS
  (next))

(defun drop (&optional offset)
  (incf *stack-pointer*) ; just shrink the stack
  (next offset))

(defun add ()
  (inst add (@ 1) (@ 0)) ; second element becomes TOS
  (drop))

(defun sub ()
  (inst sub (@ 1) (@ 0))
  (drop))


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

CL-USER> (setf *print-length* 100)
100
CL-USER> (emit-all-code 'swap 'dup 'drop 'add 'sub)
(0 32 64 96 128)
(#S(CODE-PAGE
    :ALLOC 152
    :CODE #(69 135 193 139 4 61 0 0 0 0 72 131 199 4 72 1 240 255 224 102 15 31
            132 0 0 0 0 0 15 31 64 0 69 139 248 139 4 61 0 0 0 0 72 131 199 4
            72 141 132 6 64 117 0 0 255 224 15 31 132 0 0 0 0 0 139 4 61 0 0 0
            0 72 131 199 4 72 141 132 6 192 16 0 0 255 224 102 15 31 132 0 0 0
            0 0 102 144 69 1 193 139 ...))
 ...)
CL-USER> (defparameter *code0* (code-page-code (first (second /))))
*CODE0*
CL-USER> (defparameter *code1* (code-page-code (second (second //))))
*CODE1*

code for swap The bytes range between 0 and 32. Let’s take a look at this version *stack-pointer* = 0 And *stack-pointer* = 1.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

CL-USER> (sb-sys:with-pinned-objects (*code0*)
           (sb-disassem:disassemble-memory (sb-sys:vector-sap *code0*)
                                           32))
; Size: 32 bytes
; 0669C700:       4587C1           XCHG R8D, R9D
;       03:       8B043D00000000   MOV EAX, [RDI]
;       0A:       4883C704         ADD RDI, 4
;       0E:       4801F0           ADD RAX, RSI
;       11:       FFE0             JMP RAX
;       13:       660F1F840000000000 NOP  ; padding NOPs
;       1C:       0F1F4000         NOP
NIL
CL-USER> (sb-sys:with-pinned-objects (*code1*)
           (sb-disassem:disassemble-memory (sb-sys:vector-sap *code1*)
                                           32))
; Size: 32 bytes
; 0669D810:       4587CA           XCHG R9D, R10D
;       13:       8B043D00000000   MOV EAX, [RDI]
;       1A:       4883C704         ADD RDI, 4
;       1E:       488D8406C0100000 LEA RAX, [RSI+RAX+4288]
;       26:       FFE0             JMP RAX
;       28:       0F1F840000000000 NOP
NIL

dup is at 32-64, and sub At 128-152:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

CL-USER> (sb-sys:with-pinned-objects (*code0*)
           (sb-disassem:disassemble-memory (sb-sys:sap+ (sb-sys:vector-sap *code0*) 32)
                                           32))
; Size: 32 bytes
; 0669C720:       458BF8           MOV R15D, R8D
;       23:       8B043D00000000   MOV EAX, [RDI]
;       2A:       4883C704         ADD RDI, 4
;       2E:       488D840640750000 LEA RAX, [RSI+RAX+30016]
;       36:       FFE0             JMP RAX
;       38:       0F1F840000000000 NOP
NIL
CL-USER> (sb-sys:with-pinned-objects (*code0*)
           (sb-disassem:disassemble-memory (sb-sys:sap+ (sb-sys:vector-sap *code0*) 128)
                                           24))
; Size: 24 bytes
; 0669C780:       4529C1           SUB R9D, R8D
;       83:       8B043D00000000   MOV EAX, [RDI]
;       8A:       4883C704         ADD RDI, 4
;       8E:       488D8406C0100000 LEA RAX, [RSI+RAX+4288]
;       96:       FFE0             JMP RAX
NIL

These are relatively tight. I definitely like how little data manipulation occurs; NEXT The sequence is a bit hairy, but the indirect branch is probably its weakest (and least avoidable) point.

A VM without control flow isn’t even a toy. First, the unconditional relative jump. These can be encoded as [jmp] [offset]with a 32 bit offset relative to the end of offset. we just overwrite
*virtual-ip* With new address.

1
2
3
4
5

(defun jmp ()
  (inst movsx *rax* (make-ea :dword :base *virtual-ip*))
  (inst lea *virtual-ip* (make-ea :dword :base *virtual-ip* :index *rax*
                                         :disp 4))
  (next))

Call and return are at the heart of engines like Forth. ret Easy: just pop from the control stack *virtual-ip*.

1
2
3

(defun ret ()
  (inst pop *virtual-ip*)
  (next))

The call is a little more complicated. like it jmpbut pushes the address of next Instructions to the control stack:

1
2
3
4
5
6

(defun call ()
  (inst movsx *rax* (make-ea :dword :base *virtual-ip*))
  (inst add *virtual-ip* 4)
  (inst push *virtual-ip*)
  (inst add *virtual-ip* *rax*)
  (next))

Let’s look at the resulting machine code.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

CL-USER> (emit-all-code 'jmp 'ret 'call)
(0 32 64)
(#S(CODE-PAGE
    :ALLOC 91
    :CODE #(72 99 7 72 141 124 7 4 139 4 61 0 0 0 0 72 131 199 4 72 1 240 255
            224 15 31 132 0 0 0 0 0 95 139 4 61 0 0 0 0 72 131 199 4 72 1 240
            255 224 102 15 31 132 0 0 0 0 0 102 15 31 68 0 0 72 99 7 72 131 199
            4 87 72 1 199 139 4 61 0 0 0 0 72 131 199 4 72 1 240 255 224 144
            144 144 144 144 144 144 144 144 ...))
 ...)
CL-USER> (let ((code (code-page-code (first (second /)))))
           (sb-sys:with-pinned-objects (code)
             (sb-disassem:disassemble-memory (sb-sys:vector-sap code) 91)))
; Size: 91 bytes
; 08395200:       486307           MOVSXD RAX, DWORD PTR [RDI] ; jmp
;       03:       488D7C0704       LEA RDI, [RDI+RAX+4]
;       08:       8B043D00000000   MOV EAX, [RDI]
;       0F:       4883C704         ADD RDI, 4
;       13:       4801F0           ADD RAX, RSI
;       16:       FFE0             JMP RAX
;       18:       0F1F840000000000 NOP
;       20:       5F               POP RDI                     ; ret
;       21:       8B043D00000000   MOV EAX, [RDI]
;       28:       4883C704         ADD RDI, 4
;       2C:       4801F0           ADD RAX, RSI
;       2F:       FFE0             JMP RAX
;       31:       660F1F840000000000 NOP
;       3A:       660F1F440000     NOP
;       40:       486307           MOVSXD RAX, DWORD PTR [RDI] ; call
;       43:       4883C704         ADD RDI, 4
;       47:       57               PUSH RDI
;       48:       4801C7           ADD RDI, RAX
;       4B:       8B043D00000000   MOV EAX, [RDI]
;       52:       4883C704         ADD RDI, 4
;       56:       4801F0           ADD RAX, RSI
;       59:       FFE0             JMP RAX

We have almost enough material for an interesting demo after all. The only important thing that is still missing is the call from CL to VM. I will assume that the caller takes care of saving any important registers, and preempts (rsi) and virtual ip (rdi) The registers are setup correctly. The stack will be filled on entry, by copying values ​​from the buffer. rax Points to, and is written back on exit.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

(defun enter ()
  (inst push sb-vm::rbp-tn)
  (inst mov sb-vm::rbp-tn sb-vm::rsp-tn) ; setup a normal frame
  (inst push *rax*) ; stash rax
  (dotimes (i 8)    ; copy the stack in
    (inst mov (@ i) (make-ea :dword :base *rax* :disp (* 4 i))))
  (next))

(defun leave ()
  ;; restore RAX
  (inst mov *rax* (make-ea :qword :base sb-vm::rbp-tn :disp -8))
  ;; overwrite the output stack
  (dotimes (i 8)
    (inst mov (make-ea :dword :base *rax* :disp (* 4 i))
              (@ i)))
  ;; and unwind the frame
  (inst mov sb-vm::rsp-tn sb-vm::rbp-tn)
  (inst pop sb-vm::rbp-tn)
  (inst ret))

CL-side negotiator of enter VOP is as follows:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63

(sb-c:defknown %enter-vm (system-area-pointer system-area-pointer system-area-pointer) (values)
    (sb-c:any) :overwrite-fndb-silently t)

(in-package "SB-VM")
(sb-vm::define-vop (cl-user::%enter-vm)
  (:translate cl-user::%enter-vm)
  (:policy :fast-safe)
  (:args (stack :scs (sap-reg) :target rax)
         (code :scs (sap-reg) :target rdi)
         (primitives :scs (sap-reg) :target rsi))
  (:arg-types system-area-pointer system-area-pointer system-area-pointer)
  (:results)
  (:temporary (:sc sap-reg :offset rax-offset :from (:argument 0)) rax)
  (:temporary (:sc sap-reg :offset rbx-offset :from :eval) rbx)
  (:temporary (:sc sap-reg :offset rcx-offset :from :eval) rcx)
  (:temporary (:sc sap-reg :offset rdx-offset :from :eval) rdx)
  (:temporary (:sc sap-reg :offset rdi-offset :from (:argument 1)) rdi)
  (:temporary (:sc sap-reg :offset rsi-offset :from (:argument 2)) rsi)
  (:ignore rbx rcx rdx)
  (:generator 0
    (inst push r8-tn)  ;; the stack was just too painful to declare
    (inst push r9-tn)  ;; as temporary... and it overwrites the
    (inst push r10-tn) ;; thread-base TN, which regalloc disregards.
    (inst push r11-tn)
    (inst push r12-tn)
    (inst push r13-tn)
    (inst push r14-tn)
    (inst push r15-tn)

    (move rax stack)
    (move rdi code)
    (move rsi primitives)
    (inst call rsi)   ;; assume the code page starts with ENTER

    (inst pop r15-tn)
    (inst pop r14-tn)
    (inst pop r13-tn)
    (inst pop r12-tn)
    (inst pop r11-tn)
    (inst pop r10-tn)
    (inst pop r9-tn)
    (inst pop r8-tn)))
(in-package "CL-USER")

(defun %enter-vm (stack-sap bytecode-sap primitives-sap)
  (declare (type system-area-pointer stack-sap bytecode-sap primitives-sap))
  (%enter-vm stack-sap bytecode-sap primitives-sap))

(defun vm (stack-designator bytecode primitives)
  (declare (type (simple-array (unsigned-byte 32) 1) bytecode)
           (type system-area-pointer primitives))
  ;; initialise the stack with the designator.
  (let ((stack (make-array 8 :element-type '(unsigned-byte 32)
                             :initial-element 0)))
    (if (typep stack-designator 'sequence)
        (map-into stack (lambda (x)
                          (ldb (byte 32 0) x))
                  stack-designator)
        (fill stack (ldb (byte 32 0) stack-designator)))
    (sb-sys:with-pinned-objects (stack bytecode)
      (time (%enter-vm (sb-sys:vector-sap stack) (sb-sys:vector-sap bytecode)
                       primitives)))
    stack))

The only thing missing is for our preamp to store the machine code in an array of executable memory.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

;; first, get an executable range of memory
(defvar *code-page* (sb-posix:mmap nil (* (length *stack*) *primitive-code-offset*)
                                   (logior sb-posix:prot-read sb-posix:prot-write sb-posix:prot-exec)
                                   (logior sb-posix:map-anon sb-posix:map-private)
                                   -1 0))

;; our list of primop names
(defvar *primops* '(enter leave
                    swap dup drop
                    add sub
                    jmp
                    call ret))

(defun assemble-primops ()
  (multiple-value-bind (offsets pages)
      (apply 'emit-all-code *primops*)
    (loop for page in pages
          for offset upfrom 0 by *primitive-code-offset*
          do (sb-kernel:copy-ub8-to-system-area
              (code-page-code page) 0
              *code-page* offset
              *primitive-code-offset*))
    (mapcar 'cons *primops* offsets)))

;; this alist maps primop names to offsets
(defparameter *primops-offsets* (assemble-primops))


1
2
3

CL-USER> *primops-offsets*
((ENTER . 0) (LEAVE . 64) (SWAP . 112) (DUP . 144) (DROP . 176) (ADD . 208)
 (SUB . 240) (JMP . 272) (CALL . 304) (RET . 336))

let’s execute add sub (and end with leave).

1
2
3
4
5
6
7
8
9

CL-USER> (vm '(3 2 10) (coerce '(208 240 64) '(simple-array (unsigned-byte 32) 1)) *code-page*)
Evaluation took:
  0.000 seconds of real time
  0.000003 seconds of total run time (0.000002 user, 0.000001 system)
  100.00% CPU
  2,288 processor cycles
  0 bytes consed

#(5 0 0 0 0 0 3 5)

Really, 10 - (3 + 2) = 5.

We should also test the function call

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

CL-USER> (vm '(3 2 10) (coerce '(304 8 ; call F
                                 240
                                 64
                                 ;; F:
                                 208
                                 336)
                               '(simple-array (unsigned-byte 32) 1))
             *code-page*)
Evaluation took:
  0.000 seconds of real time
  0.000005 seconds of total run time (0.000003 user, 0.000002 system)
  100.00% CPU
  2,640 processor cycles
  0 bytes consed

#(5 0 0 0 0 0 3 5)

instead of executing add Simply put, this bytecode sequence calls 8 bytes (2 words) after the call instruction; in our case, add ret.

Writing bytecode by hand is annoying. This little function takes care of the stupid stuff.

1
2
3
4
5
6
7

(defun assemble (opcodes)
  (map '(simple-array (unsigned-byte 32) 1)
       (lambda (opcode)
         (if (integerp opcode)
             (ldb (byte 32 0) opcode)
             (cdr (assoc opcode *primops-offsets*))))
       opcodes))

Now we can write

1
2
3
4
5
6
7

CL-USER> (vm '(3 2 10) (assemble '(call 8
                                   sub
                                   leave

                                   add
                                   ret))
             *code-page*)

Now we can write either (essentially) straightline code or infinite loops. We need the conditional. Their implementation is quite similar
jmpWith a little twist. Let’s start with jump if (top of the stack) is non-zero and jump if (top of the stack) is non-zero.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

(defun jcc (cc)
  ;; next word is the offset if the condition is met, otherwise,
  ;; fall through.
  (inst movsx *rax* (make-ea :dword :base *virtual-ip*))
  (inst lea *rax* (make-ea :dword :base *virtual-ip* :index *rax*
                                  :disp 4))
  (inst add *virtual-ip* 4)
  (inst test (@ 0) (@ 0))
  ;; update *virtual-ip* only if zero/non-zero
  (inst cmov cc *virtual-ip* *rax*)
  (next))

(defun jnz ()
  (jcc :nz))

(defun jz ()
  (jcc :z))

It is difficult to write programs without immediate values. Earlier control flow primitives already encode the immediate data in the virtual instruction stream. we will do the same lit, incAnd dec: :

1
2
3
4
5
6
7
8
9
10
11
12

(defun lit ()
  (decf *stack-pointer*) ; grow the stack
  (inst mov (@ 0) (make-ea :dword :base *virtual-ip*)) ; load the next word
  (next 4)) ; and skip to the next instruction

(defun inc ()
  (inst add (@ 0) (make-ea :dword :base *virtual-ip*))
  (next 4))

(defun dec ()
  (inst sub (@ 0) (make-ea :dword :base *virtual-ip*))
  (next 4))

Finally, we have enough for a nice looking (if useless) loop. First, update the premap code page:

1
2
3
4
5
6
7
8

;; C-M-x to force re-evaluation, or defparameter
(defvar *primops* '(enter leave lit
                    swap dup drop
                    add sub inc dec
                    jmp jnz jz
                    call ret))

(defvar *primops-offsets* (assemble-primops))


1
2
3
4
5
6
7
8
9
10

CL-USER> (vm '(1000000) (assemble '(lit 1 sub jnz -20 leave))
             *code-page*)
Evaluation took:
  0.009 seconds of real time
  0.009464 seconds of total run time (0.009384 user, 0.000080 system)
  100.00% CPU
  14,944,792 processor cycles
  0 bytes consed

#(0 0 0 0 0 0 0 1)

One million iterations of this stupid loop, which only decrements a counter, took 15M cycles. 15 cycles/iterations is actually not that bad… especially considering that it does an indirect jump after loading the 1, subtracting, and comparing with the 0.

We can do better by fusing. lit sub In dec: :

1
2
3
4
5
6
7
8
9
10

CL-USER> (vm '(1000000) (assemble '(dec 1 jnz -16 leave))
             *code-page*)
Evaluation took:
  0.007 seconds of real time
  0.006905 seconds of total run time (0.006848 user, 0.000057 system)
  100.00% CPU
  11,111,128 processor cycles
  0 bytes consed

#(0 0 0 0 0 0 0 0)

Decrementing a counter and jumping if non-zero is a common operation (older x86 also implemented this in hardware loop). Let’s add increments and jump if not zero (djn) to the VM:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

(defun djn ()
  (inst movsx *rax* (make-ea :dword :base *virtual-ip*))
  (inst lea *rax* (make-ea :dword :base *virtual-ip* :index *rax*
                                  :disp 4))
  (inst add *virtual-ip* 4)
  (inst sub (@ 0) 1)
  (inst cmov :nz *virtual-ip* *rax*)
  (next))

(defvar *primops* '(enter leave lit
                    swap dup drop
                    add sub inc dec
                    jmp jnz jz djn
                    call ret))

(defvar *primops-offsets* (assemble-primops))


1
2
3
4
5
6
7
8
9
10

CL-USER> (vm '(1000000) (assemble '(djn -8 leave))
             *code-page*)
Evaluation took:
  0.005 seconds of real time
  0.005575 seconds of total run time (0.005542 user, 0.000033 system)
  120.00% CPU
  8,823,896 processor cycles
  0 bytes consed

#(0 0 0 0 0 0 0 0)

This is better… but I’m not really convinced by the conditional move. The branch will usually be predictable, so it makes sense to expose and duplicate it in hardware NEXT Sequence.

1
2
3
4
5
6
7
8
9
10

(defun djn2 ()
  (sb-assem:assemble ()
    (inst sub (@ 0) 1)
    (inst jmp :z fallthrough)
    (inst movsx *rax* (make-ea :dword :base *virtual-ip*))
    (inst lea *virtual-ip* (make-ea :dword :base *virtual-ip* :index *rax*
                                           :disp 8))
    (next -4) ; might as well pre-increment *virtual-ip*
    fallthrough ; ASSEMBLE parses for labels, like TAGBODY
    (next 4)))

The resulting code is not very large, and the two indirect jumps are 16 bytes apart.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

; Size: 64 bytes
; 00510220:       4183E801         SUB R8D, 1
;       24:       7414             JEQ L0
;       26:       486307           MOVSXD RAX, DWORD PTR [RDI]
;       29:       488D7C0708       LEA RDI, [RDI+RAX+8]
;       2E:       8B043DFCFFFFFF   MOV EAX, [RDI-4]
;       35:       4801F0           ADD RAX, RSI
;       38:       FFE0             JMP RAX
;       3A: L0:   8B043D04000000   MOV EAX, [RDI+4]
;       41:       4883C708         ADD RDI, 8
;       45:       4801F0           ADD RAX, RSI
;       48:       FFE0             JMP RAX
;       4A:       660F1F840000000000 NOP
;       53:       660F1F840000000000 NOP
;       5C:       0F1F4000         NOP

This alternative implementation works better on our naive loop.

1
2
3
4
5
6
7
8
9
10

CL-USER> (vm '(1000000) (assemble '(djn2 -8 leave))
             *code-page*)
Evaluation took:
  0.004 seconds of real time
  0.004034 seconds of total run time (0.003913 user, 0.000121 system)
  100.00% CPU
  6,183,488 processor cycles
  0 bytes consed

#(0 0 0 0 0 0 0 0)

Let’s see how this compares to straight assembly code.

1
2
3
4
5
6

(defun ubench ()
  (sb-assem:assemble ()
    head
    (inst sub (@ 0) 1)
    (inst jmp :nz head)
    (next)))


1
2
3
4
5
6
7
8
9
10

CL-USER> (vm '(1000000) (assemble '(ubench leave))
             *code-page*)
Evaluation took:
  0.000 seconds of real time
  0.000629 seconds of total run time (0.000628 user, 0.000001 system)
  100.00% CPU
  1,001,904 processor cycles
  0 bytes consed

#(0 0 0 0 0 0 0 0)

My slow MacBook Air gets 1 iteration/cycle on a loop which is 100% overhead control. with djn2A good implementation of a reasonable distinct operator, loop is about 6 times slower than the original code. a worse implementation of djn This is still only 8x slower than pure native code, and extremely specialized bytecode is 11-15x slower than native code.

Specializing primeops into a virtual stack pointer is possible in practice when the stack is limited to small sizes. It also seems to have a reasonable runtime overhead for threaded interpreters. I’m not really interested in straight stack languages; However, I believe that a fixed stack VM makes a good runtime IR when combined with a mechanism for local variables. We’ll see if I find time to translate the high level language into a superoperator for such VMs. Importance of fused operators will diminish NEXT; In short, simpler function calls (because there’s less shuffling to get objects in the right position) will remain just as useful.

SBCL has certainly proven itself to be a good companion for exploring the generation of domain-specific machine code. I don’t know of any other language implementation with such support for interactive programming and machine code generation (and inspection). FWIW, I believe Luajit + Dynasm will be comparable soon.

Steel Bank Common Lisp: Because sometimes C abstracts away too much 😉



<a href

4 thoughts on “SBCL: the ultimate assembly code breadboard”

  1. Picked up two new ideas that I expect will come up in conversations this week, and a look at orbitway added another, content that arms me with talking points rather than just filling time is the kind that provides ongoing value beyond the moment of reading and this site is generating that kind of ongoing value.

    Reply

Leave a Comment
