modus operandi

This project can be divided into three parts: collecting data, processing data, and analyzing data.

gathering data

I started using SEM Rush’s Open.Trends service to find the top websites for each country across all industries. Although this can be done manually, I automated the process using the Python libraries beautifulsoup and selenium-python (you can also use the requests library in this case, but I already have Selenium imported). Here’s some pseudo-code to get an idea of ​​how it’s done:

# run a function to get the list of countries Open.Trends has listed on their site
countries = getCountries()

# initialize a dictionary to store the information
d = {
    'country':[],
    'website':[],
    'visits':[]
}

# iterate through that list
for country in countries:
  # follow semrush's URL formatting and plug in the country using a formatted string
  url = f'https://www.semrush.com/trending-websites/{country}/all'

  # navigate to the URL using Selenium Webdriver
  driver.get(url)

  # feed the page information into BeautifulSoup
  soup = BeautifulSoup(driver.page_source, 'html.parser')

  # extract the table data using BeautifulSoup
  results = getTableData(soup)

  # feed the results into the dictionary
  d['country'] = results['country']
  d['website'] = results['website']
  d['visits'] = results['visits']

# save this into some sort of file
df = pandas.DataFrame(d)
df.save_csv('popular_websites.csv', index=False)

Comment: The quality of this data is subject to the accuracy of SEM Rush’s methods. I didn’t really look into it too deeply because their listings were comparable to similar services.

You should now have a dictionary of the most popular websites in each country. Many of those websites will be pornographic or contain malware or both. Let’s try to filter out some of them using the Siren URL Lookup API. It is a service that uses “machine learning, inference, and human analysis” to classify websites.

Here’s more pseudocode:

# iterate through all the websites we found
for i in range(len(df['website'])):
  # select the website
  url = df.loc[i,'website']
  # call the API on the website
  category = getCategory(url)
  # save the results
  df.loc[i,'category'] = category

# filter out all the undesireable categories
undesireable = [...]
df = df.loc[df['category'] in undesireable]

# save this dataframe to avoid needing to do this all over again
df.save_csv('popular_websites_filtered.csv', index=False)

Comment: The Siren URL Lookup API has 1,000 free queries per user per month.

Completely separate note: You can use services like temp-mail to create temporary email addresses.

Now it’s time to take some screenshots of websites! If you want to take full page screenshots, you have to use Selenium-Python’s Firefox WebDriver. If not, any webdriver is fine. However, you probably won’t want to use full page screenshots as webpage sizes vary greatly and this may make your final results less interpretable.

def acceptCookies(...):
  # this function will probably consistent of a bunch of try-exception blocks
  # in search of a button that says accept/agree/allow cookies in every language
  # ngl i gave up like 1/3 of the way through

def notBot(...):
  # some websites will present a captcha before giving you access
  # there are ways to beat that captcha
  # i didn't even try but you should

# iterate through websites
for i in range(len(df['website'])):
  url = df.loc[i,'website]
  driver.get(url)

  # wait for the page to load
  # you shouldn't really use static sleep calls but i did
  sleep(5)
  notBot(driver)
  sleep(2)
  acceptCoookies(driver)
  sleep(2)

  # take screenshots
  driver.save_screenshot(f'homepage_{country.upper()}_{url}.png')

  # this call only exists for firefox webdrivers
  driver.save_full_page_screenshot(f'homepage_{country.upper()}_{url}.png')

Comment: When doing so, you can use a VPN to navigate to the appropriate country/region to increase your chances of viewing local web pages.

data processing

I mostly followed this tutorial by Grigory Serebryakov on LearnOpenCV. It uses an implementation of ResNet models to extract features from an image. You can pull the code from his blog post but we need to load our images differently. We can use this method by andrewjong (source). We need to save the image file paths for use in our final visualization.

class ImageFolderWithPaths(datasets.ImageFolder):
    """Custom dataset that includes image file paths. Extends
    torchvision.datasets.ImageFolder
    """

    # override the __getitem__ method. this is the method that dataloader calls
    def __getitem__(self, index):
        # this is what ImageFolder normally returns
        original_tuple = super(ImageFolderWithPaths, self).__getitem__(index)
        # the image file path
        path = self.imgs[index][0]
        # make a new tuple that includes original and the path
        tuple_with_path = (original_tuple + (path,))
        return tuple_with_path

Now we can load our images using that method.

# identify the path containing all your images
# if you want them to be labeled by country, you will need to sort them into folders

root_path="..."

# transform the data so they are identical shapes
transform = transforms.Compose([transforms.Resize((255, 255)),
                                 transforms.ToTensor()])
dataset = ImageFolderWithPaths(root, transform=transform)

# load the data
dataloader = torch.utils.data.DataLoader(dataset, batch_size=32, shuffle=True)

We then initialize and run our model. I needed to adapt Serebryakov’s code a bit to account for how our images were loaded.

# initialize model
model = ResNet101(pretrained=True)
model.eval()
model.to(device)

# initialize variables to store results
features = None
labels = []
image_paths = []

# run the model
for batch in tqdm(dataloader, desc="Running the model inference"):

  images = batch[0].to('cpu')
  labels += batch[1]
  image_paths += batch[2]

  output = model.forward(images)
  # convert from tensor to numpy array
  current_features = output.detach().numpy()

  if features is not None:
      features = np.concatenate((features, current_features))
  else:
      features = current_features

# return labels too their string interpretations
labels = [dataset.classes[e] for e in labels]

# save the data
np.save('images.npy', images)
np.save('features.npy', features)
with open('labels.pkl', 'wb') as f:
  pickle.dump(labels, f)
with open('image_paths.pkl', 'wb') as f:
  pickle.dump(image_paths, f)

We should now have 4 sets of data that contain our image paths, labels, images and their extracted features.

data analysis

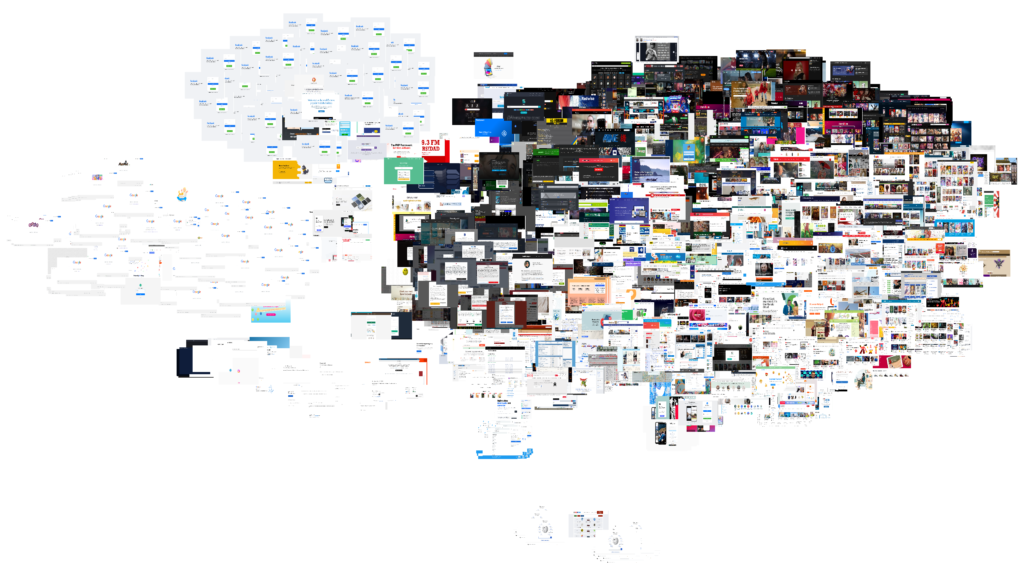

We start by running our data through Sci-Kit’s TSN implementation. This basically reduces our multidimensional feature array to 2D coordinates that we can place on a graph. We can map smaller versions of our screenshots to those coordinates to see how the machine has organized our websites.

# the s in t-SNE stands for stochastic (random)
# let's set a seed for reproducible results
seed = 10
random.seed(seed)
torch.manual_seed(seed)
np.random.seed(seed)

# run tsne
n_components = 2
tsne = TSNE(n_components)
tsne_result = tsne.fit_transform(features)

# scale and move the coordinates so they fit [0; 1] range
tx = scale_to_01_range(tsne_result[:,0])
ty = scale_to_01_range(tsne_result[:,1)

# plot the images
for image_path, image, x, y in zip(image_paths, images, tx, ty):
  # read the image
  image = cv2.imread(image_path)

  # resize the image
  image = cv2.resize(image, (150,100))

  # compute the dimensions of the image based on its tsne co-ordinates
  tlx, tly, brx, bry = compute_plot_coordinates(image, x, y)

  # put the image to its t-SNE coordinates using numpy sub-array indices
  tsne_plot[tl_y:br_y, tl_x:br_x, :] = image

cv2.imshow('t-SNE', tsne_plot)
cv2.waitKey()

Now we can see any visual patterns in the images. What I found is detailed in the sections above.

I wanted to understand this data through the lens of writing systems, culture (geographically and economically), and technology. So, I found datasets containing that information: writing systems, ISO countries with regional codes, and the global North-South divide. They needed to be complemented with some additional Google searching to ensure that our dataset had labels for each country.

Here’s a basic overview of how I used this new analysis data.

analysis_data = # import data

# initialize a list to capture a parallel set of labels
# so instead of the country, we can label our data through writing system, etc.
new_labels = []

# iterate through our pre-existing labels and use it to inform our new_labels
for label in labels:
  # select the new_label based on the old label (the country name)
  new_label = analysis_data['country' == label]
  new_labels.append(new_label)

# use the new_labels to colour a scatterplot with our tsne_results
tsne_df = pd.DataFrame({'tsne_1': tx, 'tsne_2': ty, 'label': new_labels})
sns.scatterplot(x='tsne_1', y='tsne_2', data=tsne_df, hue="label")

Comment: More qualitative methodology has been used in technology reasoning and is not included here.

We can see the results of those comparisons in the above sections
